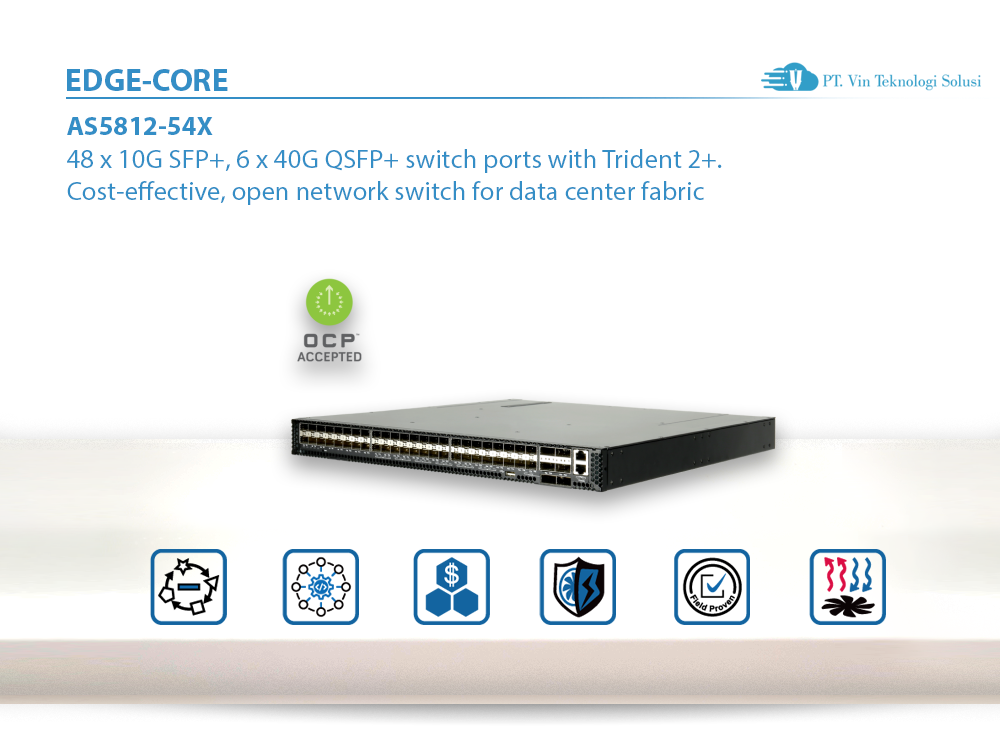

EdgecorE Networks Indonesia AS5812-54X

EdgecorE Networks Indonesia

• 48 x SFP+ switch ports, supporting 10GbE (DAC, 10GBASE-SR/LR) or 1GbE (1000BASE-T/SX/LX).
• 6 x 40 QSFP switch ports, each supporting 40GbE (DAC, 40GBASE-SR4/LR4) or 4 x 10GbE (DAC or fiber breakout cable).
• Port Grouping to group 4 x 10G ports into one 40G port at the physical layer for maximum bandwidth utilization, and for 300 m optical reach over MMF (Subject to NOS options).
• VXLAN and NVGRE tunneling support in hardware for network virtualization.
• Rack mountable in standard 19″ racks. Mountable in 21″ Open Rack with the Open Rack Switch Adapter.
• Supports hot/cold aisle with front-to-back or back-to-front airflow SKUs.

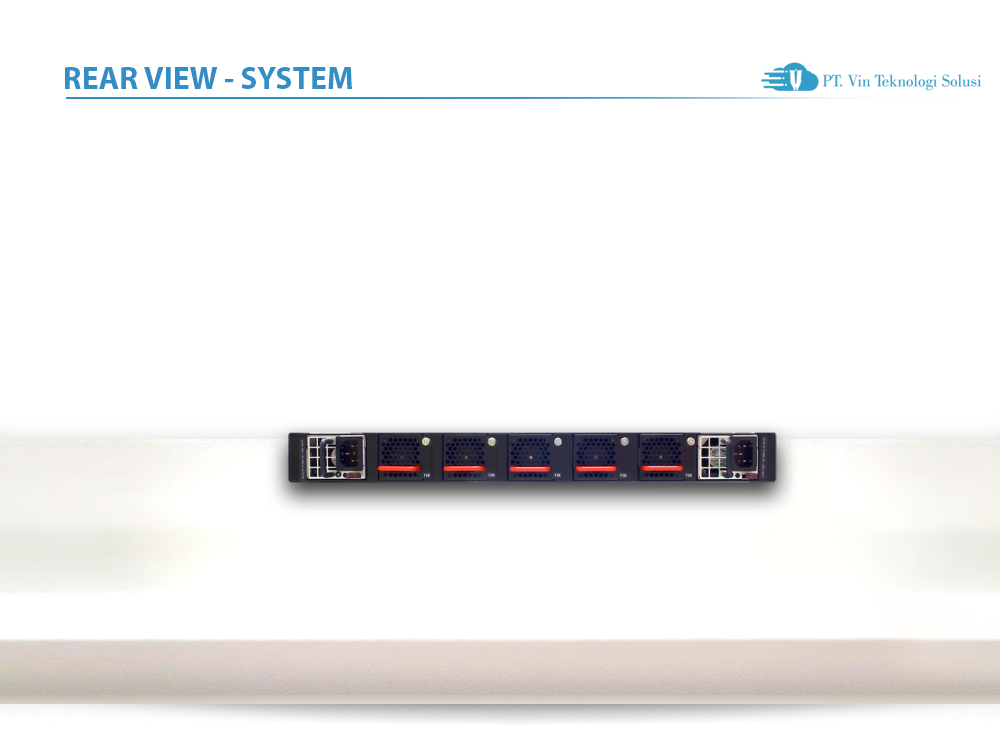

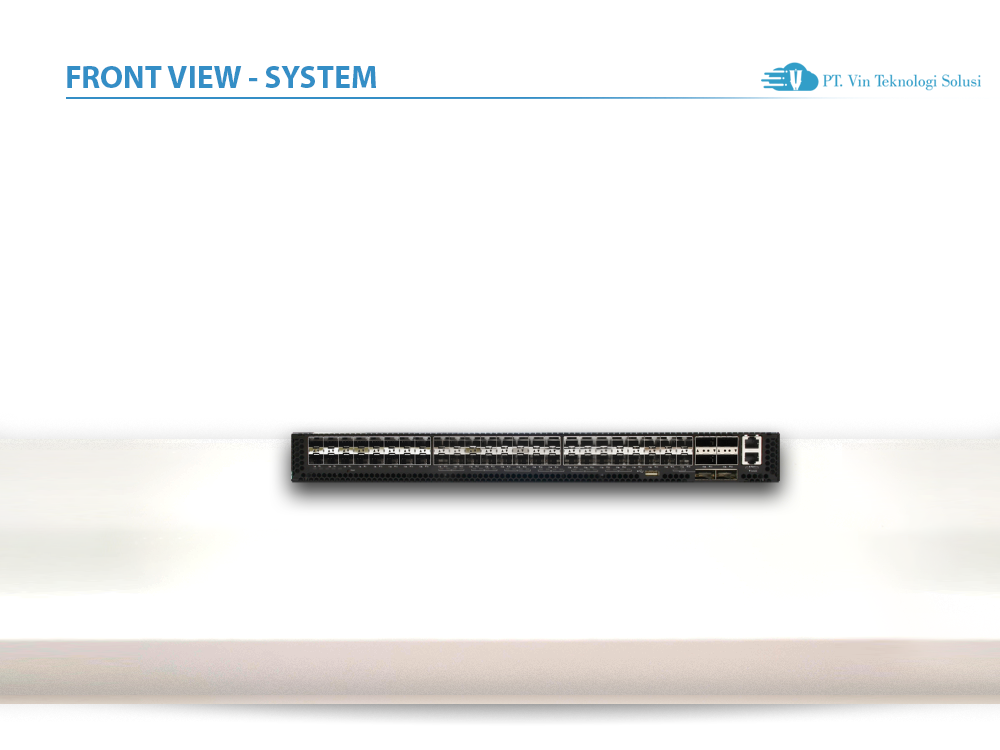

• All ports on front; PSUs, fan modules on rear.
• Hot-swappable, load sharing, redundant AC or -48 VDC PSUs. 12 VDC power input option.
• Hot swappable 4+1 redundant fan modules.
• Management: Ethernet and console RJ-45 ports; USB storage port.

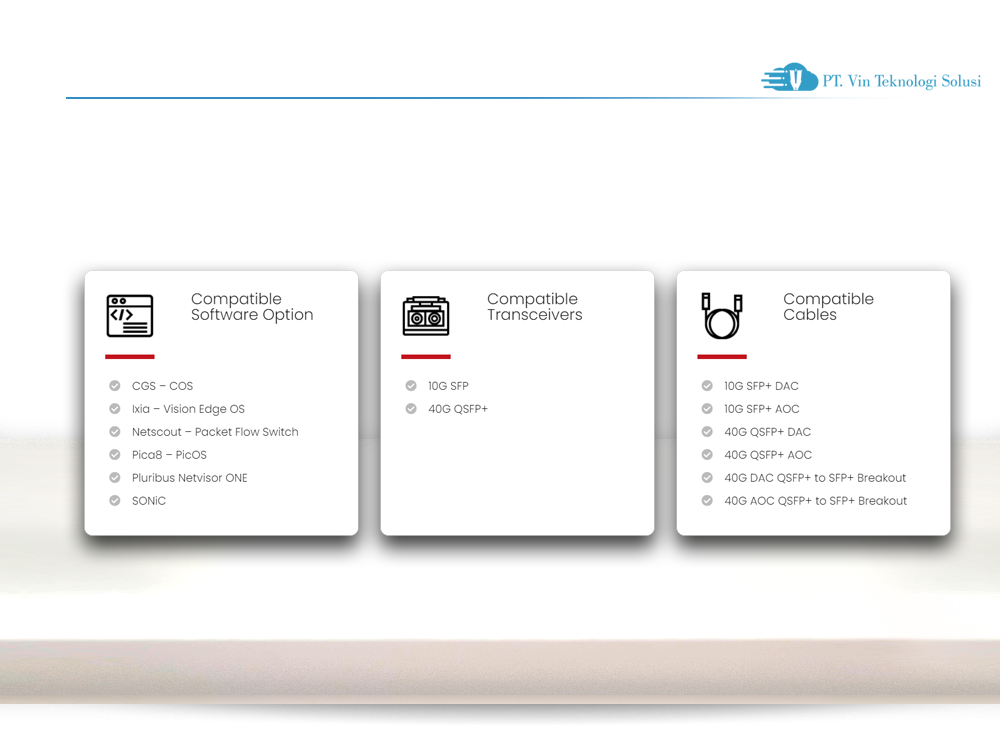

• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
