EdgecorE Networks Indonesia AS7816-64X

EdgecorE Networks Indonesia

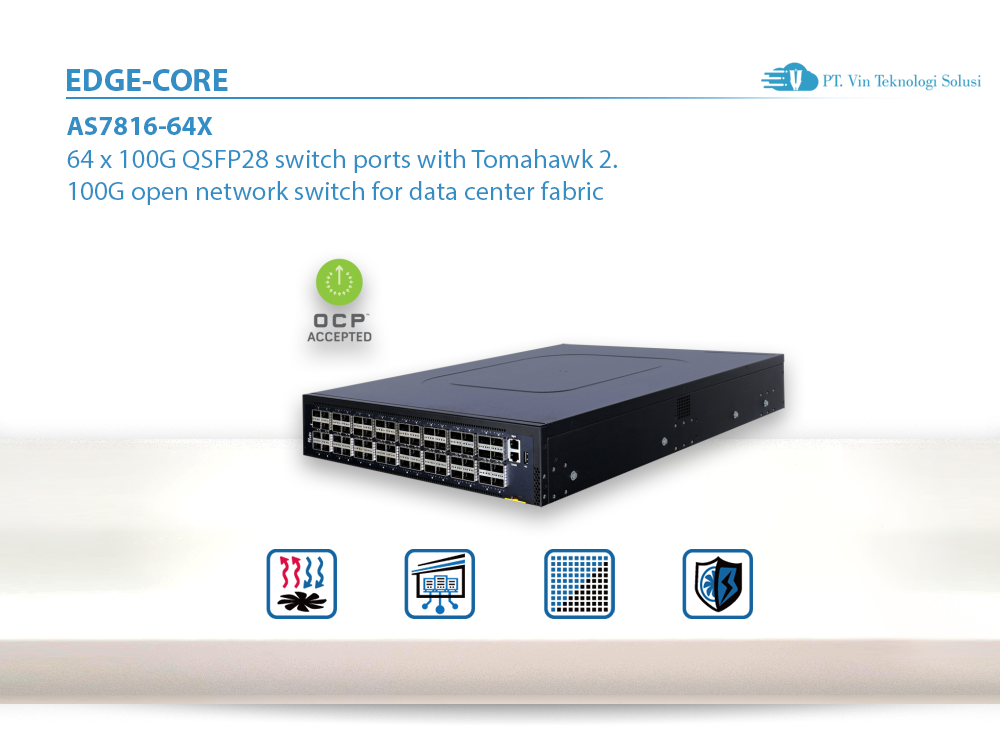

• 64 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout cables 4 x 25 GbE or 4 x 10 GbE to a maximum of 128 logical ports.
• Incorporates Broadcom StrataXGS Tomahawk II switch series silicon.
• High performance Intel® Xeon® D-1518 CPU.
• 2 RU form factor.
• Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

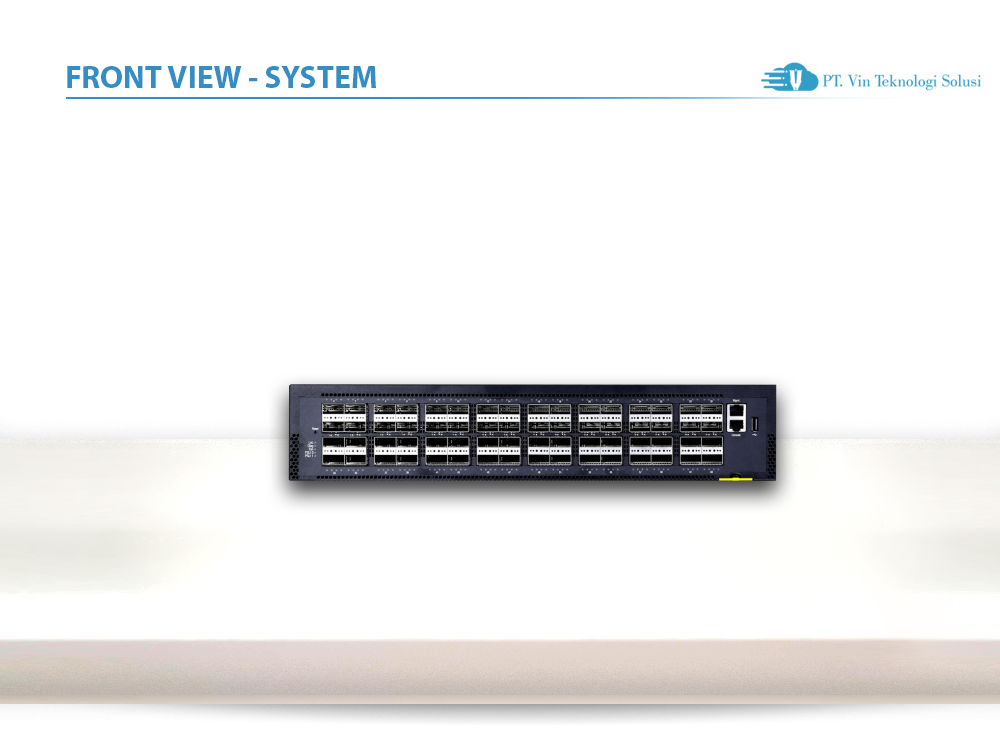

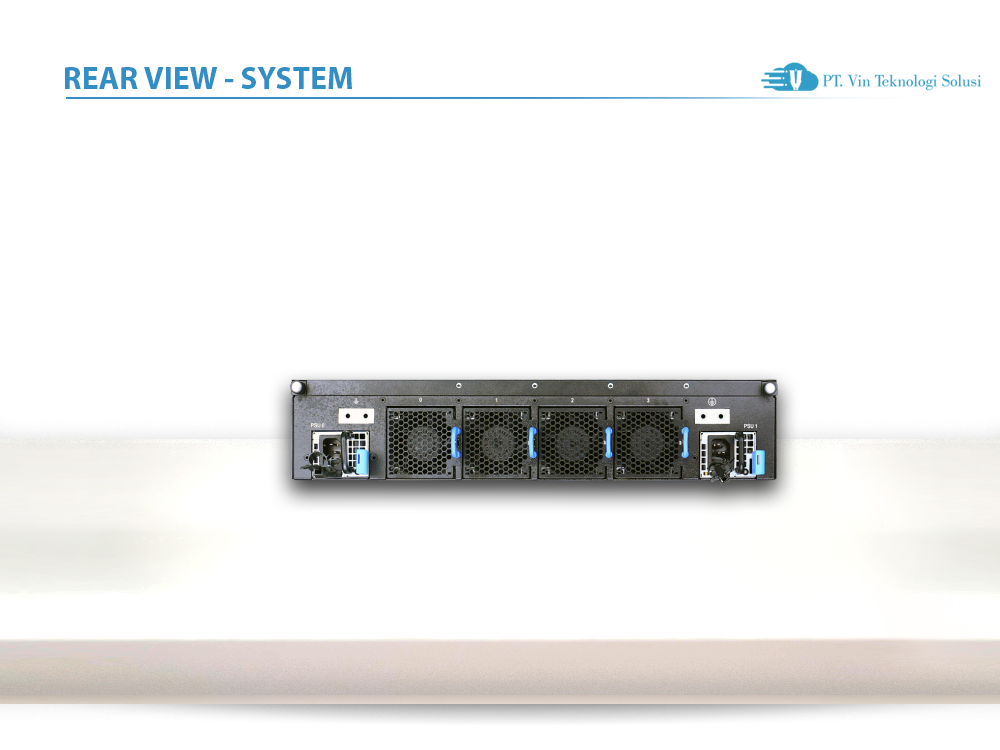

• All ports on front; PSUs and fans accessible from rear.
• Hot-swappable, load-sharing, redundant 850W PSUs.
• 3+1 redundant, hot-swappable fan modules.

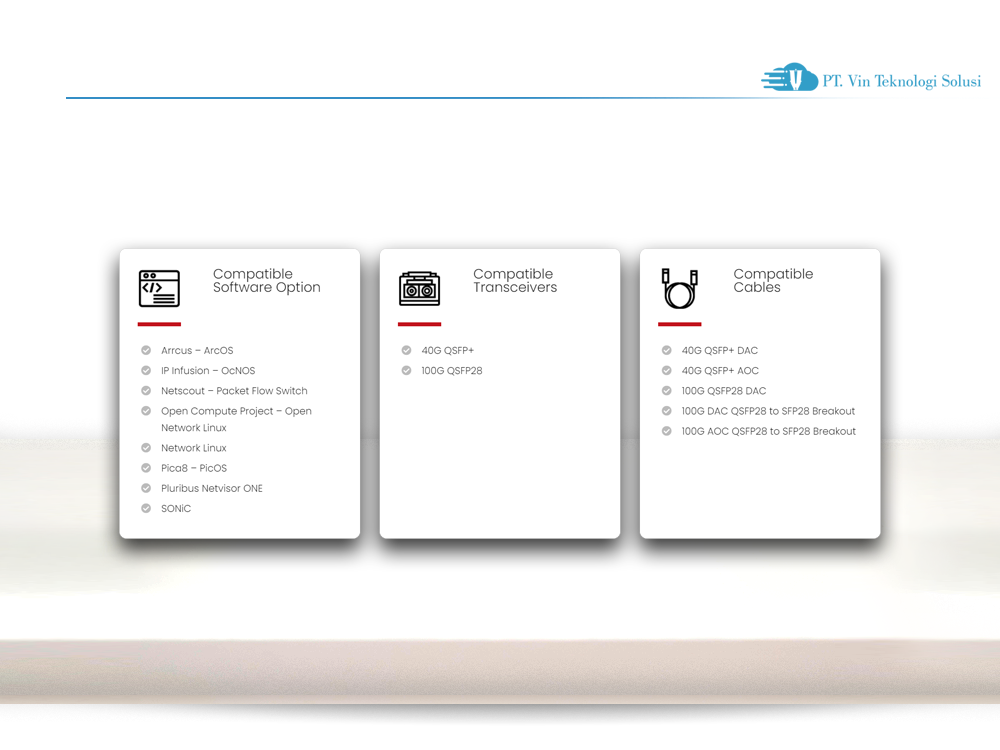

• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
• Supports the Redfish management API, now a requirement of the Open Compute Project.
