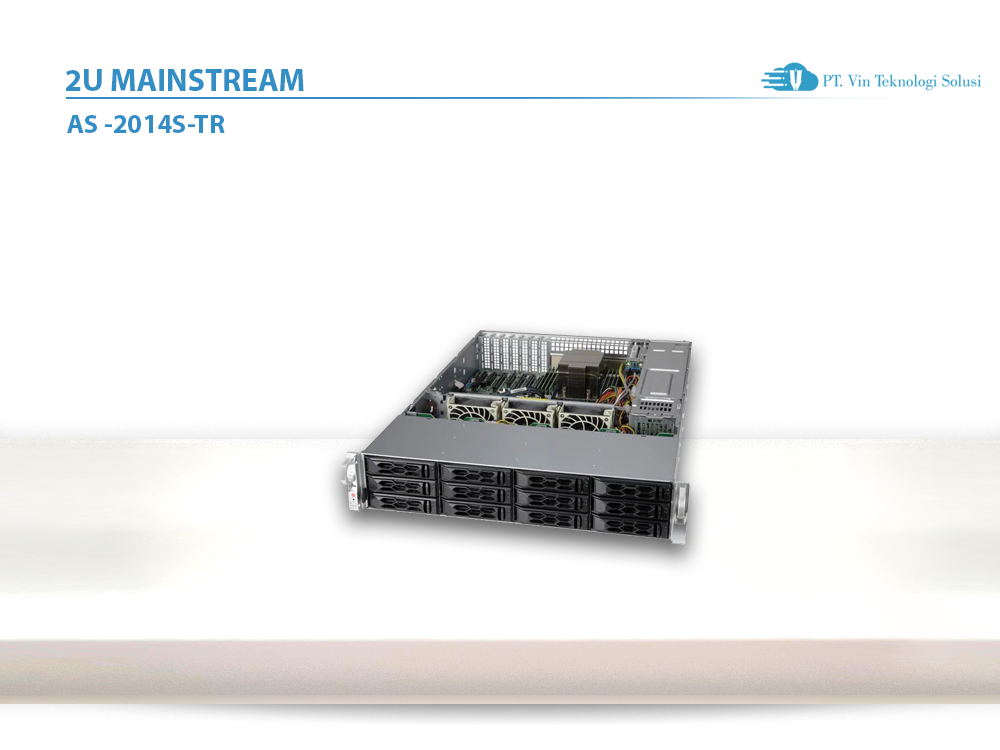

Supermicro Server Indonesia AS -2014S-TR

Supermicro Server Indonesia

Key Applications

– Backup storage
– Web or Database Servers
– Compact Network Appliance
Key Features

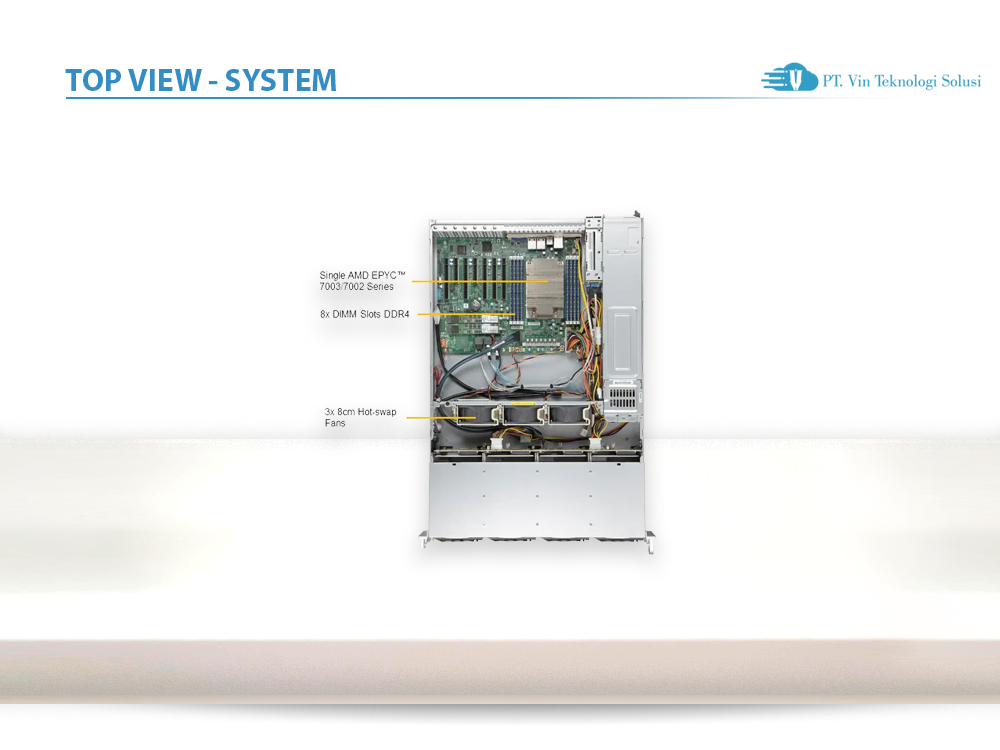

1. Single AMD EPYC™ 7002/7003 Series Processor
   (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

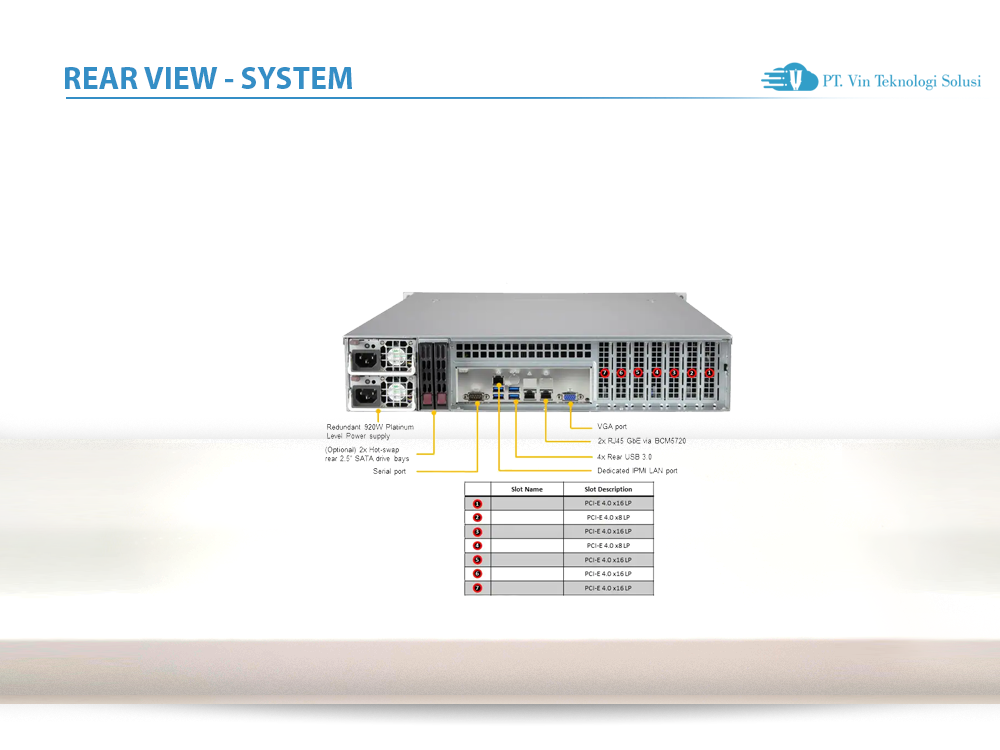

3. 5 PCI-E 4.0 x16 LP slots, 2 PCI-E 4.0 x8 LP slots
4. 2x 1GbE LAN ports, 1 dedicated IPMI LAN port

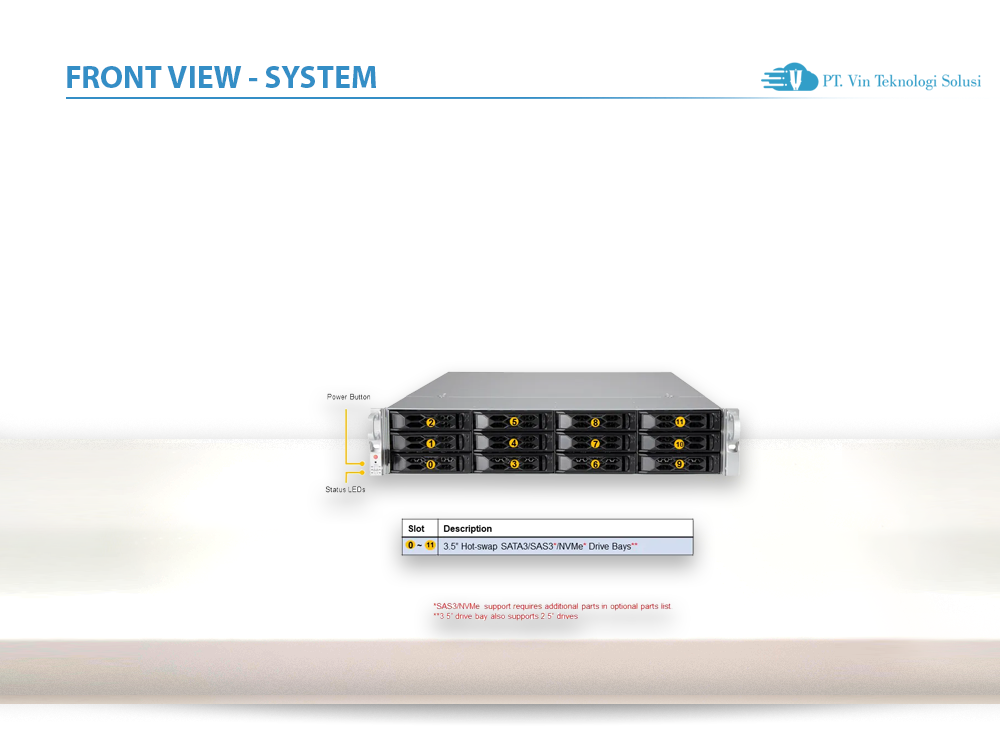

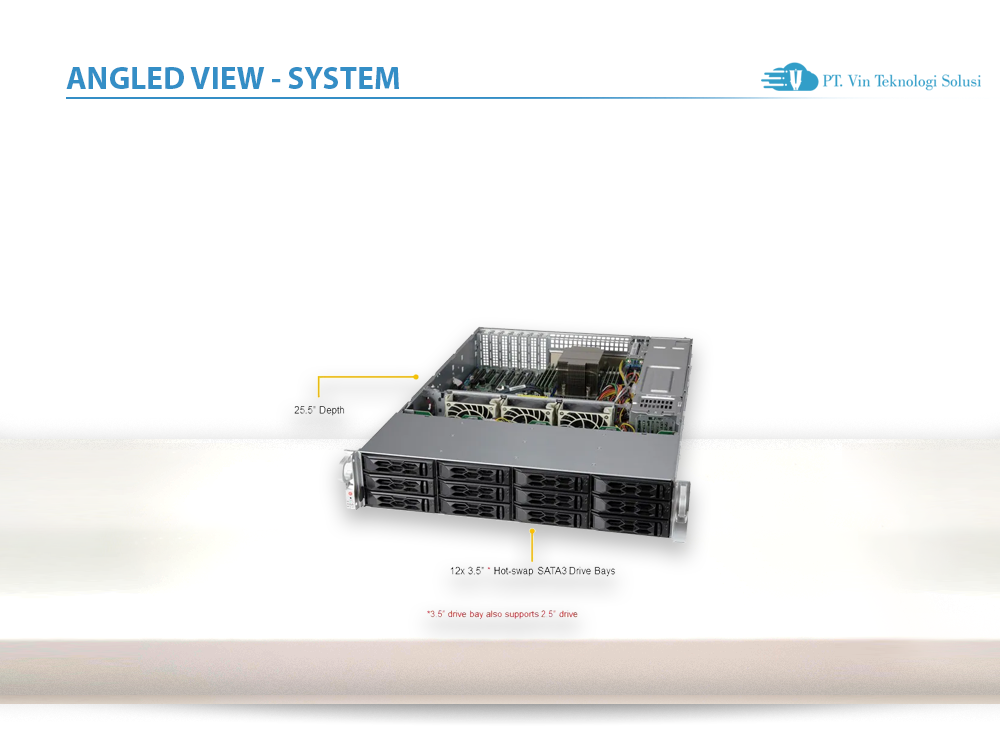

5. 12 Hot-swap 3.5″ SATA3 drive bays,
   2 rear Hot-swap 2.5″ SATA3 Drive bays via optional kit
   M.2 Interface: 2 PCI-E 4.0 x4
   M.2 Form Factor: 2242, 2260, 2280, 22110
   M.2 Key: M-Key
6. 6 USB 3.0 ports (4 rear, 2 via header), 1 VGA, 1 COM, ASPEED AST2500 BMC graphics
7. 920W Redundant Platinum Level Power Supplies
   (Full redundancy based on configuration and application load)
