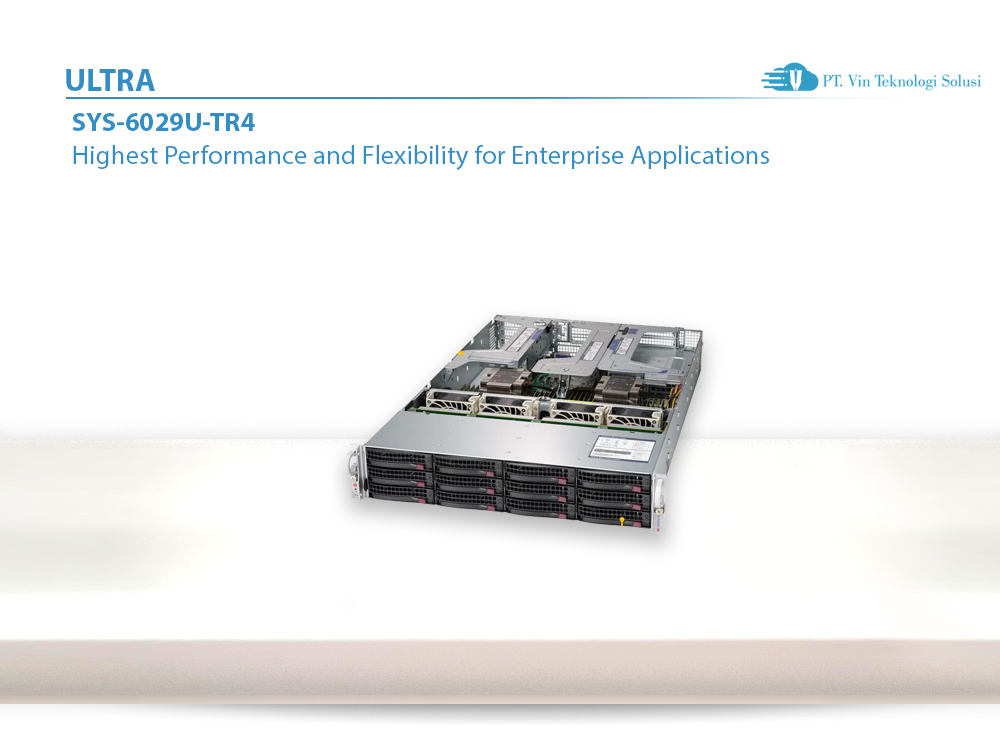

Supermicro Server Indonesia SYS-6029U-TR4

Supermicro Server Indonesia

Key Applications

• Virtualization
• Hyperconverge Storage
• Cloud Computing
• High End Enterprise Server
• Flexible Networking Options

Key Features

1. Dual Socket P (LGA 3647) support2nd Gen Intel® Xeon® Scalableprocessors (Cascade Lake/Skylake)^‡
2. 24 DIMMs; up to 6TB 3DS ECCDDR4-2933MHz^†RDIMM/LRDIMM,
   Supports Intel® Optane™ DCPMM^††
3. 1 PCI-E 3.0 x16 slot (FH, 10.5″ L),
   5 PCI-E 3.0 x8 slots (FH, 10.5″ L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
4. 4 1GbE LAN ports via Intel i350AM4
5. 12 Hot-swap 3.5″ drive bays:
   12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5″ rear drive
   bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
6. 4 Heavy duty 8cm fans
7. 1000W High efficiency (96%)
   Redundant PSU; Titanium Level
